Ventura® Lathes
Built on our core strength of retrofitting and modernizing legacy Escomatic® machines, our mechanical and CNC lathes combine proven kinematics with modern technology to deliver ultimate precision at the lowest cost per part.
Lathes Application Guide download

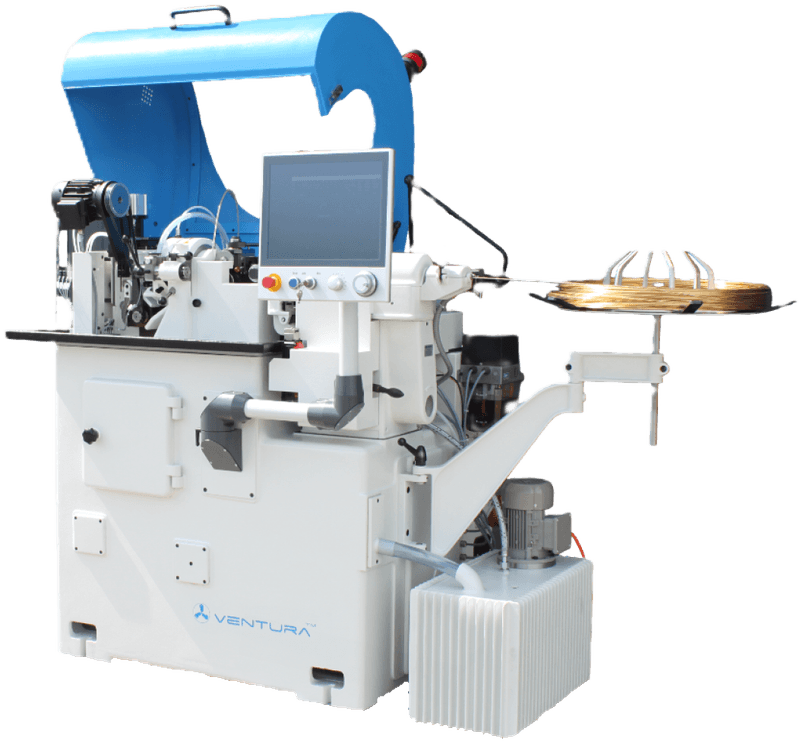

SoftCam CNC
Engineered for absolute production flexibility and higher productivity. Ideal for frequent setups, complex part geometries, and rapid changeovers without sacrificing speed.

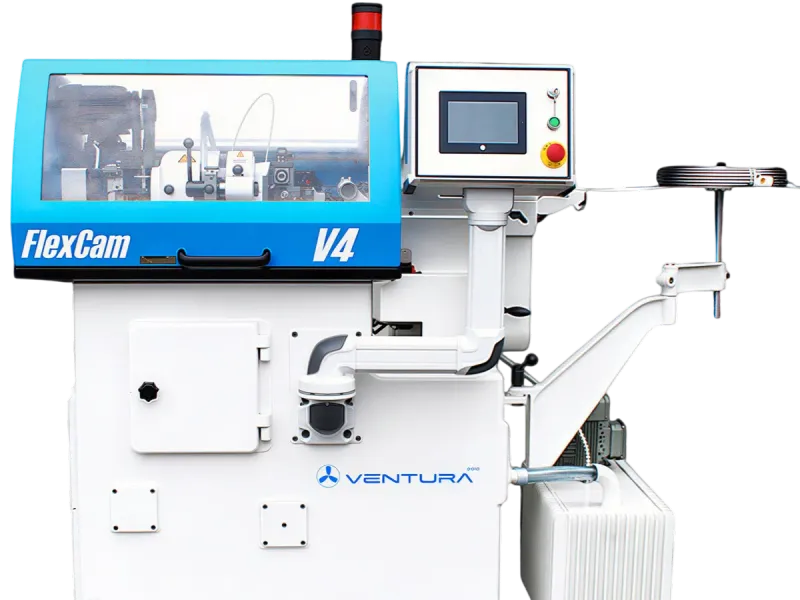

FlexCam Mechanical
Designed for large production series. Delivers ultra-optimized, high-volume efficiency to achieve the absolute lowest cost per part in continuous manufacturing.
Two Manufacturing Philosophies
Choose the core ecosystem that perfectly aligns with your production volume and flexibility requirements.
Proven Mechanics, Modern Technology
Our retrofits represent the perfect blend between proven solid mechanics and modern technology, built to Swiss quality standards.

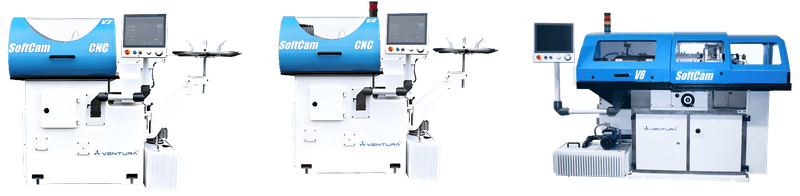

SoftCam CNC Lineup
A comprehensive range of 6 advanced CNC models featuring our proprietary Virtual Cam System. Experience mechanical cycle times with CNC versatility.
V2
CNC Virtual CamThe only CNC machine on the market matching mechanical cam cycle times. Simultaneous execution of axes movements. Programming learned in a few hours via optimized pictograms.
V2-PM/PMF
CNC Virtual CamFeatures an axially movable counter-collet for tough materials where chips are difficult to remove. Perfect for turning rivets that cannot be ejected normally.
V4/V5
CNC Virtual CamFeatures a 3-station turret (1 counter-collet, 2 boring). Station change in 1/4" driven by a Geneva drive with pilot punch locking for absolute positioning accuracy.
V6S
CNC Virtual CamEngineered for medium and large series. Features a counter-collet enabling clean cutting without cut-off burrs. Lubricant delivered by 6 converging jets for self-cleansing.
V6-PM
CNC Virtual CamIntegrates a programmable mobile counter-collet on the high-speed V6 platform, combining heavy-duty series capacity with tough material chip management.
V6SR1A
CNC Virtual CamHigh-end complex machining. 4-station turret (front, back & transverse). Servo-controlled high-precision threading driven by auxiliary motor with electric braking.

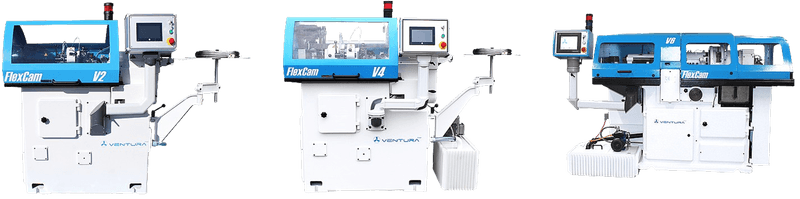

FlexCam Mechanical Lineup
For dedicated, large-scale production runs, our FlexCam series utilizes an ultra-optimized Mechanical Cam System. Every SoftCam model has an identical FlexCam twin sharing the exact same structural footprints and tool capacities.
V2
Mechanical CamFastest solution for economical and precise medium/large series. Features individual optimization of operational parameters. Camshaft speed can be programmed per segment to slow down feed during sectioning and increase it while turning.
V2-PM/PMF
Mechanical CamEvolution of the V2 FlexCam equipped with an axially movable counter-collet. Optimized for stiff materials. Enables the precise turning and clean cutting of rivets and similar parts which cannot be normally ejected.
V4/V5
Mechanical CamFeatures a high-precision 3-station turret (1 counter-collet, 2 boring). Station change in 1/4" driven by a Geneva drive. Locking via a pilot punch placed on a larger radius guarantees absolute positioning accuracy.
V6
Mechanical CamThe ultimate high-speed solution to mass-produce parts without threading or drilling. Equipped with a counter-collet for burr-free cutting. Features a material safety stop and 6 converging lubrication jets for self-cleansing.
V6-PM
Mechanical CamCombines the high-volume robust platform of the V6 with a fully integrated mobile counter-collet system. Designed for rapid, continuous turning of medium/large series using tough materials.
V6SR1A
Mechanical CamEngineered for complex parts needing boring, tapping, threading, or milling. 4-station turret. Threading spindle rotation speed is programmed via touch screen and driven by an auxiliary motor for flawless threading.
Inverse Turning Technology
Unlike conventional lathes where the bar stock rotates, Ventura machines keep the material static while the cutting tools rotate around the coil stock. This unique method unlocks major economic and operational advantages for small-diameter turning.
Reverse Turning Architecture
- chevron_right Centrifugal Stability: Static material feed eliminates bar vibrations and centrifugal forces, allowing extreme rotational speeds up to 12,000 RPM.
- chevron_right Continuous Coil Feed: Straightening and feeding directly from bulk wire coils holds thousands of parts in a single setup, eliminating constant reload halts.
- chevron_right Simultaneous Axes Execution: Combined cam cycles allow turning, boring, and cutting operations to execute in parallel, minimizing part-to-part cycle times.
Unparalleled Shop Productivity
- task_alt Compact Floor Footprint: Space-saving coil holders replace bulky 4-meter bar feeders, allowing you to fit up to 3 to 4 times more machines on the same shop floor.
- task_alt Massive Material Savings: Replaces bar-end scrap (typically 10-15% material loss per bar) with continuous wire feeding, reducing material waste to near-zero.
- task_alt True 24/7 Autonomy: Long-interval bulk coils enable unattended overnight shifts, allowing a single operator to manage a large fleet of active machines.
Digital Solutions & V-CONNECT
Our New Generation Control (NGC) represents the very latest in user-friendly CNC control. Featuring a highly intuitive visual programming system (SoftCam), it enables digital-native operators to configure and operate machines with zero downtime.
Take full control of your production floor with V-CONNECT. This IoT communication feature integrates directly with your machine park to provide real-time monitoring, alerts, and deep statistical analysis wherever you are.
Smart Notifications
Receive automated SMS and email notifications informing you of the running condition of your machines.
Live Monitoring
View ongoing production in real-time. Track part counters, remaining production time, and part names remotely.
Active Alarms
Identify and respond to active messages and machine tool lamp statuses instantly, minimizing production halts.
Productivity Stats
Interconnect, collect, and analyze data to optimize productivity and reduce programming times across your fleet.
Explore Our Turning Solutions
Interested in upgrading your production line with SoftCam flexibility or FlexCam high-volume efficiency? Contact our Swiss engineering team for a feasibility study and custom quote.
